Scope
Server accessories can be platform-, chassis-, or revision-specific. Visual similarity is not enough to establish fit.
Request preparation
Provide the server identity, accessory function and location, exact reference if known, revision, required included parts, quantity, and acceptable alternatives.
Technical parameters and selection boundaries
Published configurations differ by manufacturer and exact part number. These are selection dimensions, not one combined specification.
| Parameter | Documented example or choice | Verify for this request |
|---|---|---|

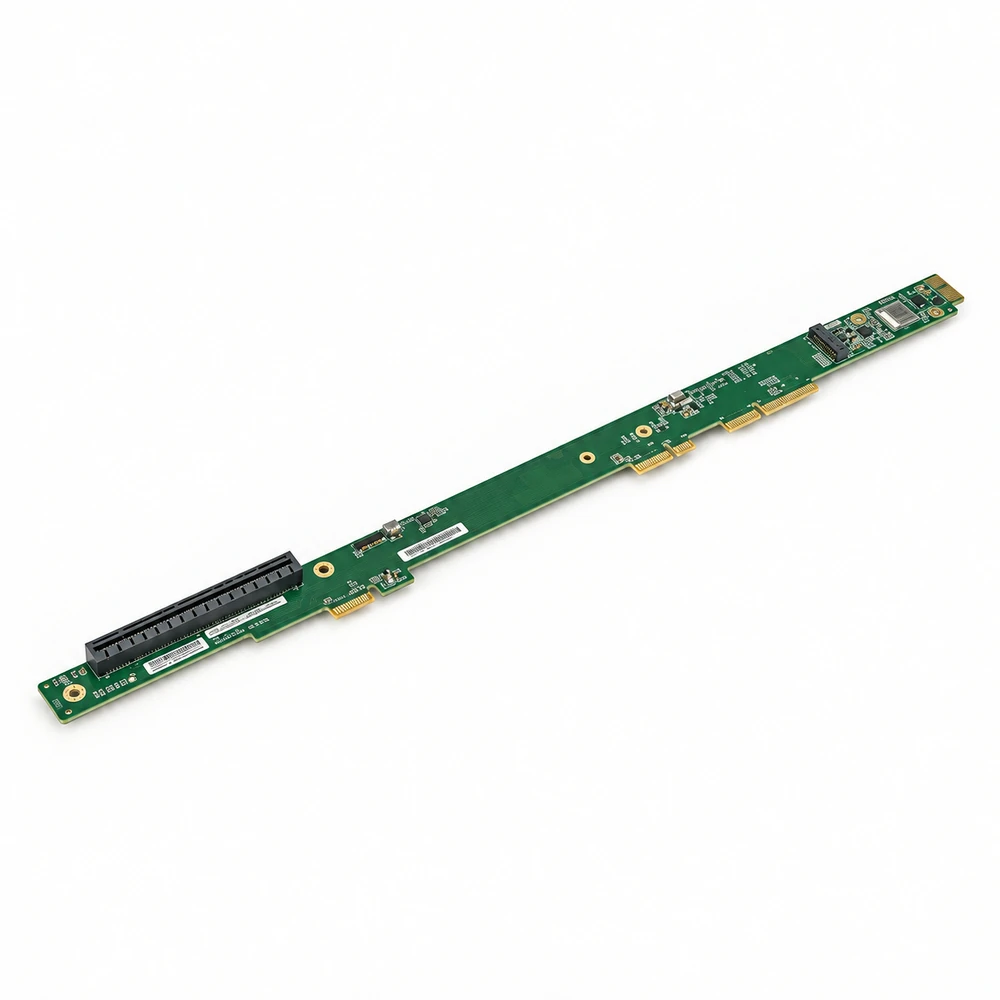

| Platform-specific riser | Lenovo 4C57A81451 is listed as an SR250-series x8/x8 PCIe Gen4 riser card. | Match the server generation, chassis and supported expansion topology. A mechanically similar riser is not evidence of interchangeability. |
| Backplane and bay construction | The SR250 V3 guide distinguishes four-bay 3.5-inch simple-swap SATA and eight-bay 2.5-inch hot-swap SAS/SATA constructions. | BMWS and BMPU are configuration feature codes, not complete spare-part numbers. Confirm the controller, cable kit and service FRU. |
| Rail mounting envelope | For 4M17A13564: rail length 751.2 mm; listed mounting-flange distance 609.6–863.6 mm; square or round mounting holes. | The mounting-distance measurement is defined by the OEM installation guide. Rail length alone does not establish rack compatibility. |
| Rail service and clearance | The named rail is a half-out friction slide; the comparison table says no cable-management arm and no in-rack server maintenance. | Plan service access and cable slack. Do not describe this as a full-extension service rail or an included CMA kit. |
Standard configurations and project options
| Configuration area | Documented option | Project decision |
|---|---|---|
| Short rack or two-post mounting | The guide separately lists 4M17A37605 short four-post rails and 4M17A37105 two-post screw-in rails. | Select by rack type, hole style, flange spacing and required service access; do not substitute solely because all are called rails. |
| Match the storage accessory set | Choose the backplane together with supported controller, cable routing, drive-bay layout and swap method. | Retain the machine type and existing FRU labels in the request. A SAS/SATA label does not automatically establish NVMe support. |
Representative models and configurations
Examples illustrate real product variation. A listed manufacturer or model is not a statement of our stock, authorization, or confirmed availability.
| Manufacturer / series | Published configuration | Important scope |
|---|---|---|
| Lenovo 4C57A81451 | SR250-series x8/x8 PCIe Gen4 riser; feature code BMWQ. | Specific platform accessory listed in the SR250 V3 guide; confirm the actual machine configuration. |
| Lenovo 4M17A13564 | Toolless Friction Rail v2; four-post installation; 751.2 mm listed rail length. | OEM platform example, not a universal rack compatibility or load guarantee. |
| Lenovo 4M17A37605 | Short rack rail kit; 484.0 mm listed rail length; 355.6–609.6 mm flange distance. | Verify the installation-guide measurement and chassis support before selecting. |
Applications and procurement context
- For maintenance or chassis configuration work, start with machine type, existing FRU labels, backplane/controller layout and rack dimensions. Preserve the differences between a configuration feature code, an orderable accessory and a service replacement part.
Compatibility, current supply, lead time, origin, and acceptance documents must be confirmed for the actual order.
