Scope
Rack accessories need the rack system, physical envelope, mounting, load, airflow, cable-management, and included-hardware context.
Request preparation
Provide rack or enclosure details, intended function, dimensions, mounting points, load or airflow considerations, finish, included parts, quantity, and destination.
Technical parameters and selection boundaries
Published configurations differ by manufacturer and exact part number. These are selection dimensions, not one combined specification.
| Parameter | Documented example or choice | Verify for this request |
|---|---|---|

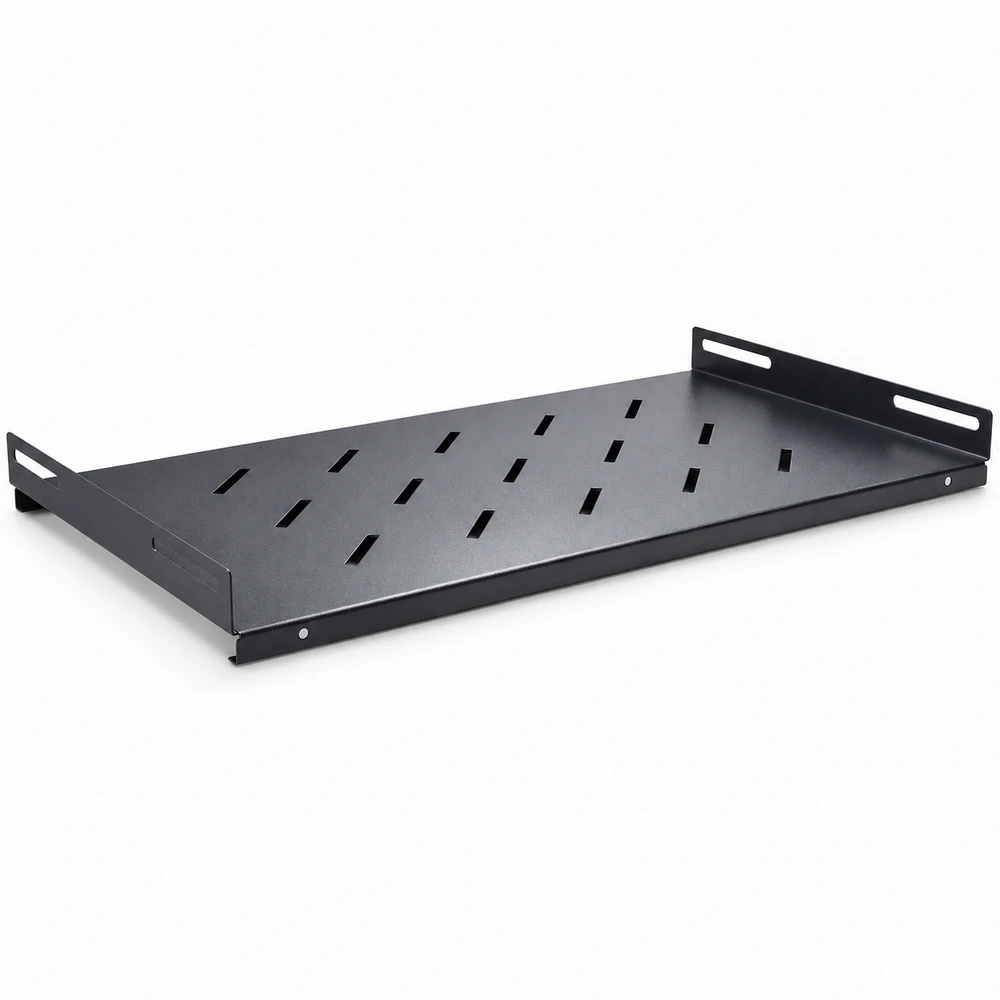

| Specific shelf envelope | Inter-Tech SW-270/450, article 88887346: 1U; 45 × 485 × 270 mm (height × width × depth). | These dimensions belong to this shelf. Confirm rack mounting geometry and supported equipment footprint. |
| Load limit | The product page specifies a maximum 15 kg load. | This is the shelf rating, not the rack rating. Confirm load distribution, mounting method and fasteners in the installation instructions. |
| Finish, weight and kit | RAL 9005 finish; net weight 1.27 kg; shelf and assembly material listed in the delivery scope. | Gross shipping weight is separately 1.29 kg. Confirm exact included hardware and rack fit rather than assuming every fastener is supplied. |
Standard configurations and project options
| Configuration area | Documented option | Project decision |
|---|---|---|
| Depth and equipment support | This documented shelf has 270 mm depth and a 15 kg maximum load. | Choose a shelf that supports the equipment footprint and planned mass. A deeper or sliding shelf requires its own dimensions and load evidence. |
| Installation kit and finish | The example includes assembly material and has RAL 9005 finish. | Specify mounting-hole style, fastening kit and finish when requesting another construction; confirm these against its drawing. |
Representative models and configurations
Examples illustrate real product variation. A listed manufacturer or model is not a statement of our stock, authorization, or confirmed availability.
| Manufacturer / series | Published configuration | Important scope |
|---|---|---|
| Inter-Tech 88887346 / SW-270/450 | 1U shelf; 45 × 485 × 270 mm; maximum load 15 kg; RAL 9005. | Exact vendor example, not a claim of current inventory or compatibility with every 19-inch rack. |
Applications and procurement context
- Support suitable equipment in a rack using a shelf matched to the device footprint, total load and mounting hardware. Treat shelves, blanking panels, cable managers and rail kits as separate mechanical selections.
Compatibility, current supply, lead time, origin, and acceptance documents must be confirmed for the actual order.
